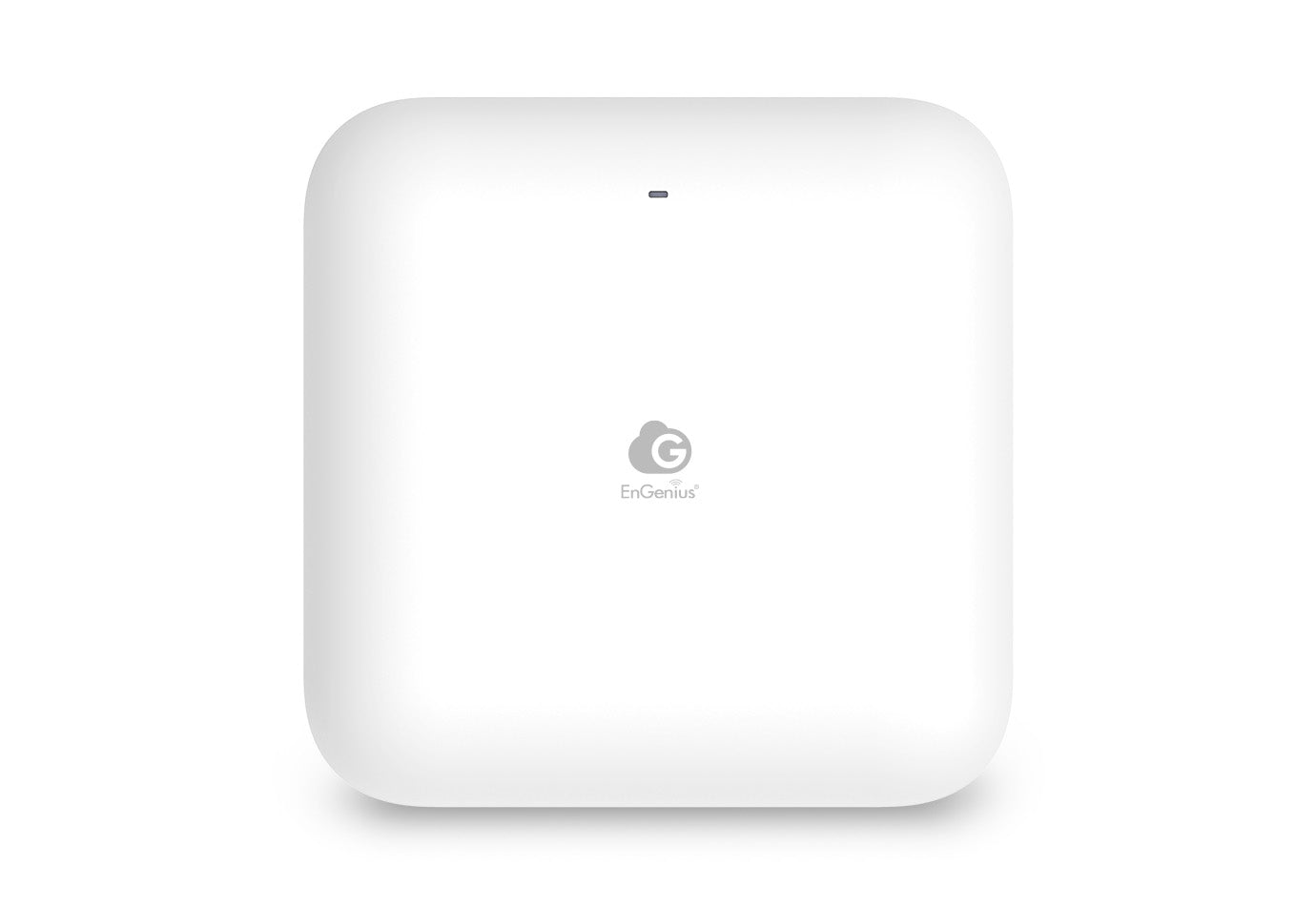

EnGenius Cloud Managed ECW520 Wi-Fi 7 2x2x2 Indoor Tri-Band Access Point

in stock!

EnGenius Cloud Managed ECW520 is a Wi-Fi 7 tri-band access point featuring a 2x2x2 antenna configuration, offering speeds of 5,800 Mbps on 6GHz, 4,300 Mbps on 5GHz, and 700 Mbps on 2.4GHz. The ECW520 has one 2.5 GbE PoE+ Ethernet port, ensuring gigabit performance and facilitating easy placement in enterprises.

Technical Specifications
ECW520
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)
Processor
Qualcomm® Networking Pro 1220
Antenna
2 x 2.4 GHz: 6 dBi (Integrated Omni-Directional)
2 x 5 GHz: 6 dBi (Integrated Omni-Directional)
2 x 6 GHz: 6 dBi (Integrated Omni-Directional)
Physical Interface
1 x 2.5 GE Port (PoE+)
1x DC Jack
1 x Reset Button
LED Indicators
1 x Multi-Color LED
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)
Maximum Power Consumption
25.4W
Wireless & Radio Specifications
Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz
Operation Modes
Managed Mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 5850MHz ~ 5895MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
Up to 20 dBm on 6 GHz
