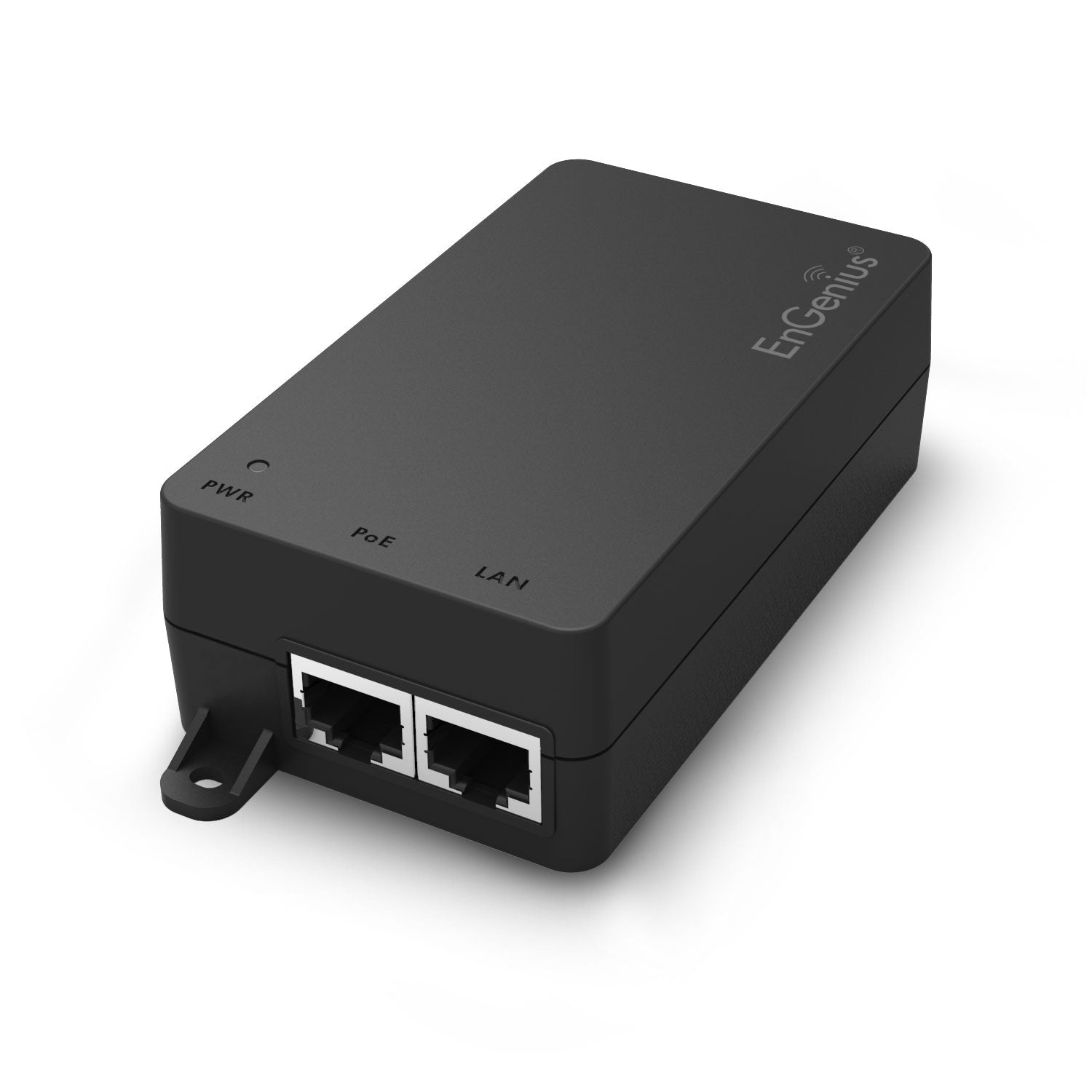

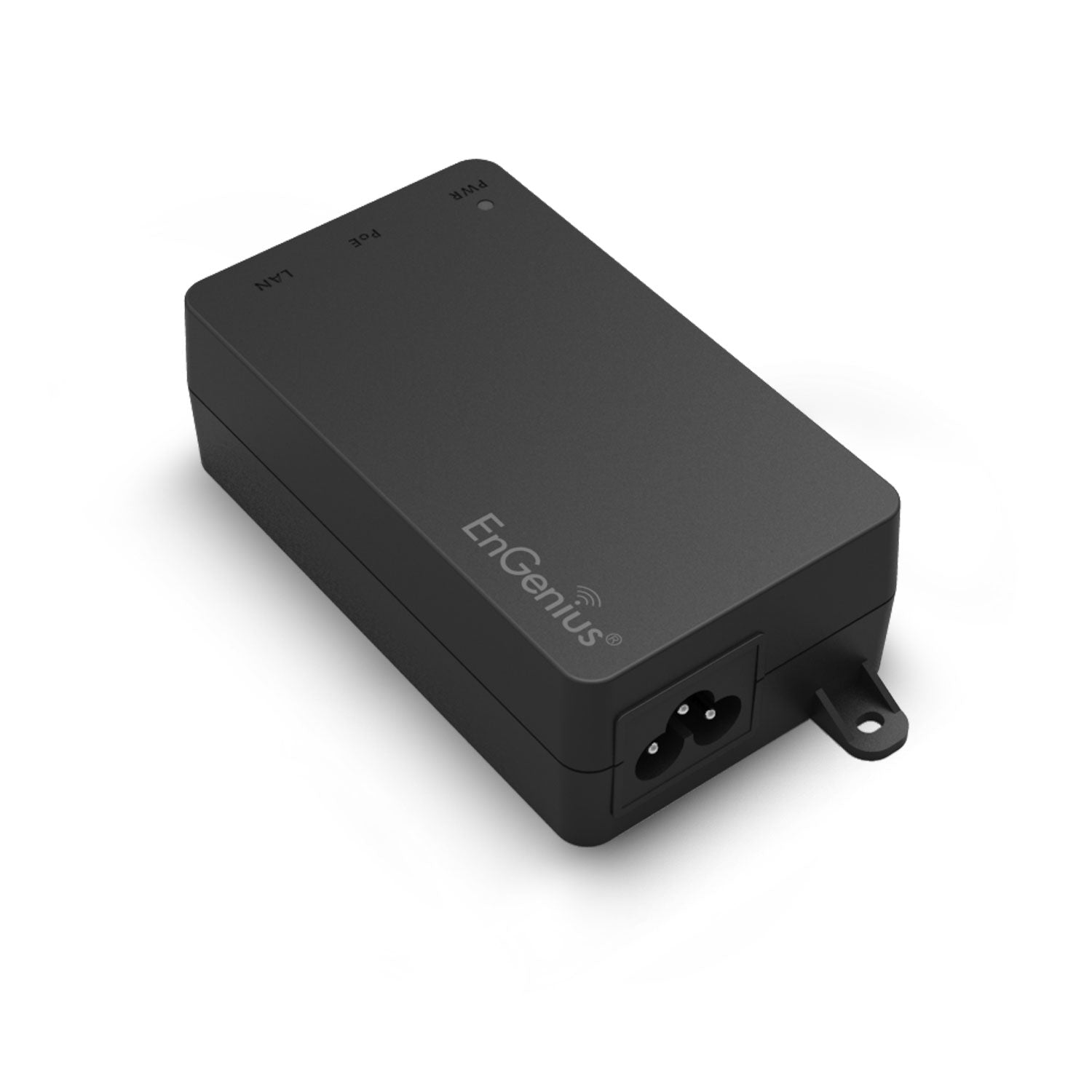

EPA5060XBT EPA5060XBT 60W 10Gb Single-Port Power-over-Ethernet (PoE++) Adapter

The EnGenius EPA5060XBT PoE Adapter delivers 60-watts of power and 10G data communication to compatible network devices up to 328 feet (100m) over ethernet cable (25 words)

Power Specification

Input Voltage: 100 ~ 240VAC

Input Current:

1.12A @ 120V AC

0.75A @ 240V AC

Input Frequency: 50-60Hz

Maximum Output Power: 60W

Powerline:

Pin 4 (Vdc+) & Pin 5 (Vdc+)

Pin 7 (Vdc-) & Pin 8 (Vdc-)

Data Specification

Ethernet Port Standards: IEEE 802.3af/at/bt Compliant
