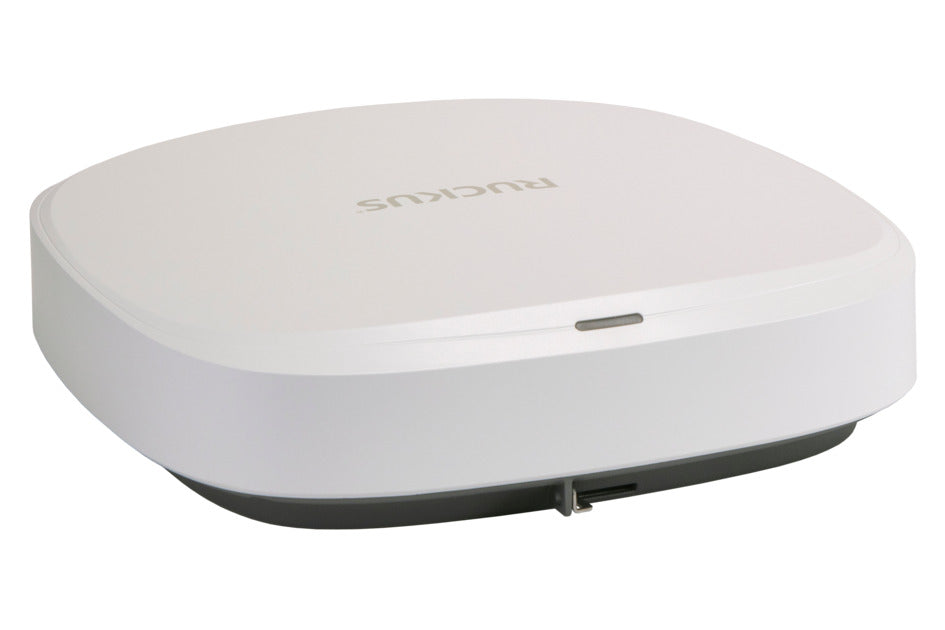

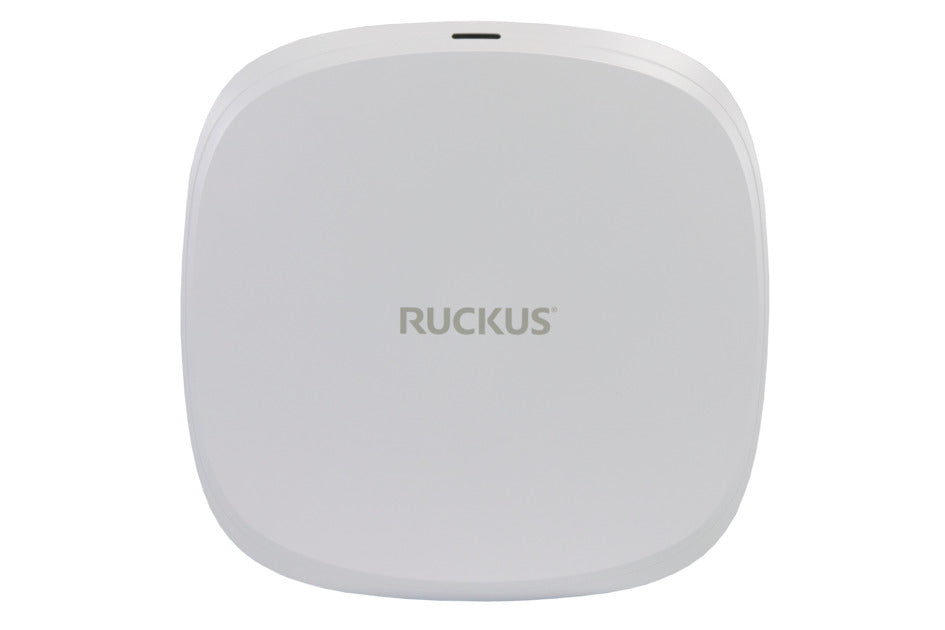

Ruckus R770 Unleashed TriBand 4x4 + 2x2 Wi-Fi 7

Ruckus R770 Unleashed Wi-Fi 7 tri-band concurrent wireless Access Point with 2x2 (2.4GHz) + 4x4 (5GHz) + 2x2 (6GHz) RF configurations. Wi-Fi 7 support in all three frequency bands. 6GHz band supports LPI mode and SP mode with AFC. Fully backward compatible with Wi-Fi 6E. Can also be configured to 2x2 (2.4GHz) + 4x4 (5GHz) dual-band RF configurations through software, with Wi-Fi 7 support in both frequency bands.

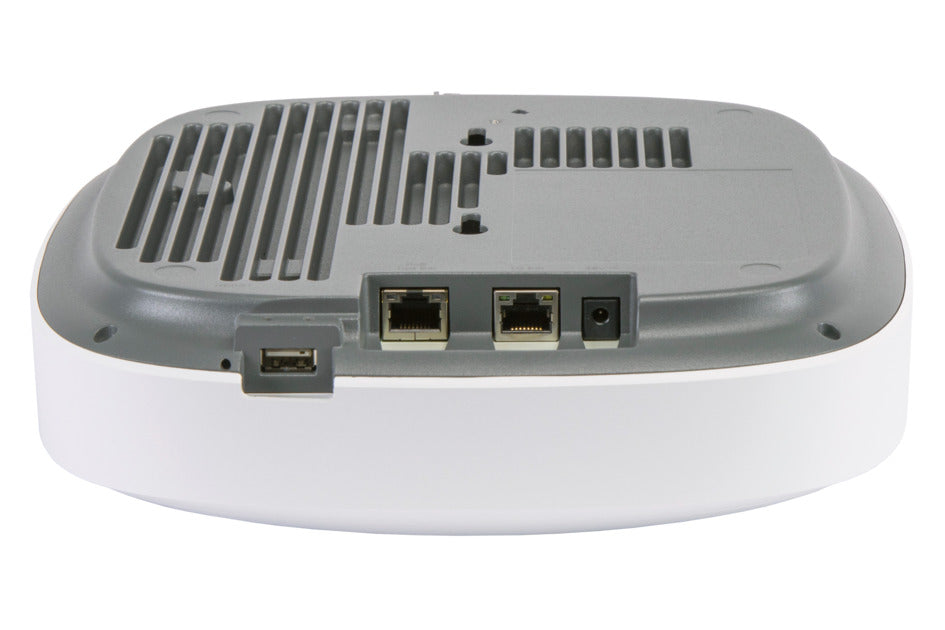

BeamFlex+®, one 10-Gigabit Ethernet backhaul, one 1-Gigabit auxiliary port, 802.3bt PoE-in and 48V DC, onboard Bluetooth® Low Energy (BLE) and Zigbee® technology selectable IoT radio with “Matter” and “Thread” capable, USB 2.0, TPM 2.0, Secure Boot, and DPSK3.

Includes adjustable acoustic drop ceiling bracket. Does not include power Injector

R1 cloud license required for full functionality

Click here for 802.3bt 60W PoE++ injector

AC power adapter

Click here for ECS5512FP PoE++ 802.3bt 10Gb switch
