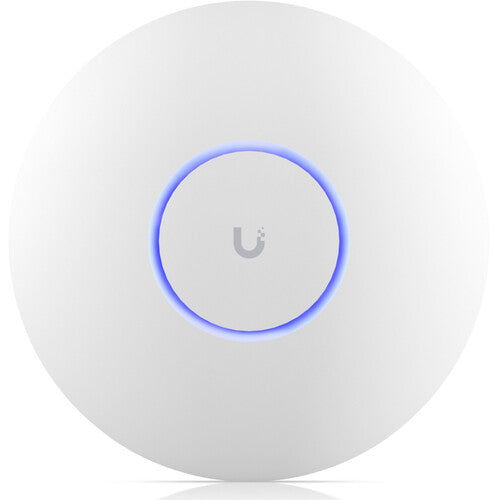

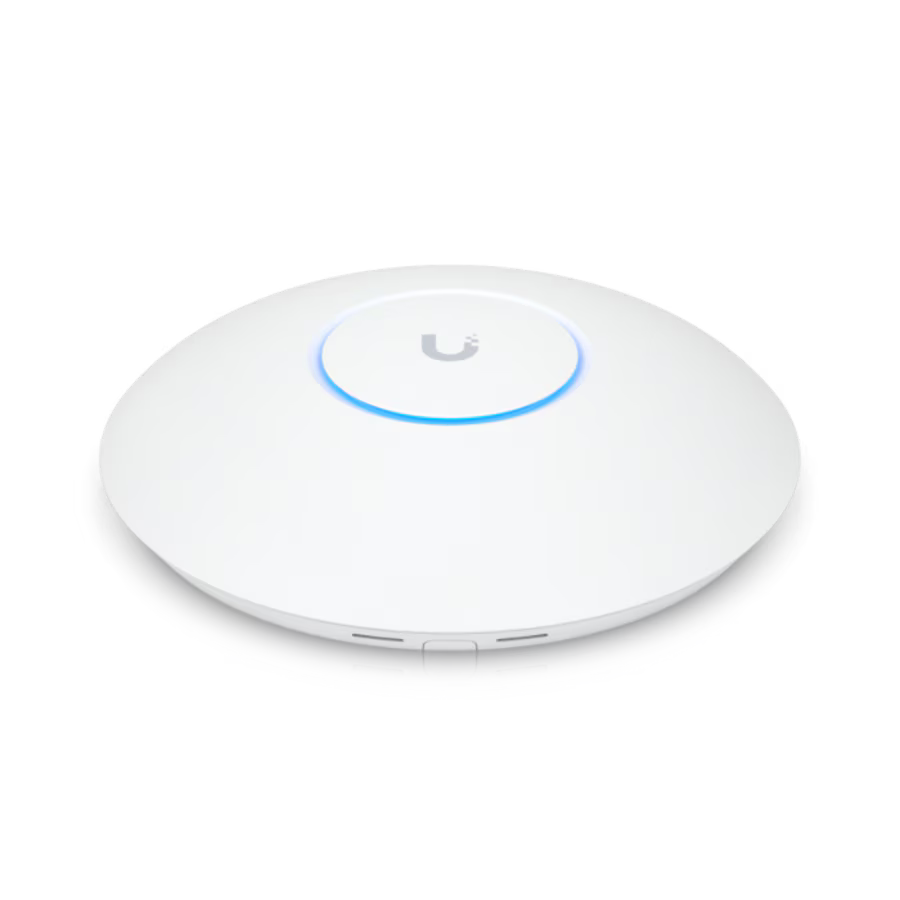

U7 Pro Ceiling-mounted Tri-Band WiFi 7 AP

The Ubiquiti UniFi U7 Pro brings Wi-Fi 7 performance to home or enterprise setups, featuring a 2.5 GbE uplink and tri-band coverage for demanding networks.

Key Features & Specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be) with support for 802.11a/b/g/n/ac/ax legacy standards.

• Wireless Capacity: Features 6 spatial streams (2x2 MU-MIMO across all three bands).

• Maximum Throughput: Up to 9.3 Gbps total aggregation speed:

  • 6 GHz: Up to 5765 Mbps (320 MHz channel width support)

  • 5 GHz: Up to 2882 Mbps

  • 2.4 GHz: Up to 688 Mbps

• Coverage & Capacity: Covers up to 1,500 sq ft (140 m²) and supports 300+ concurrent client connections.

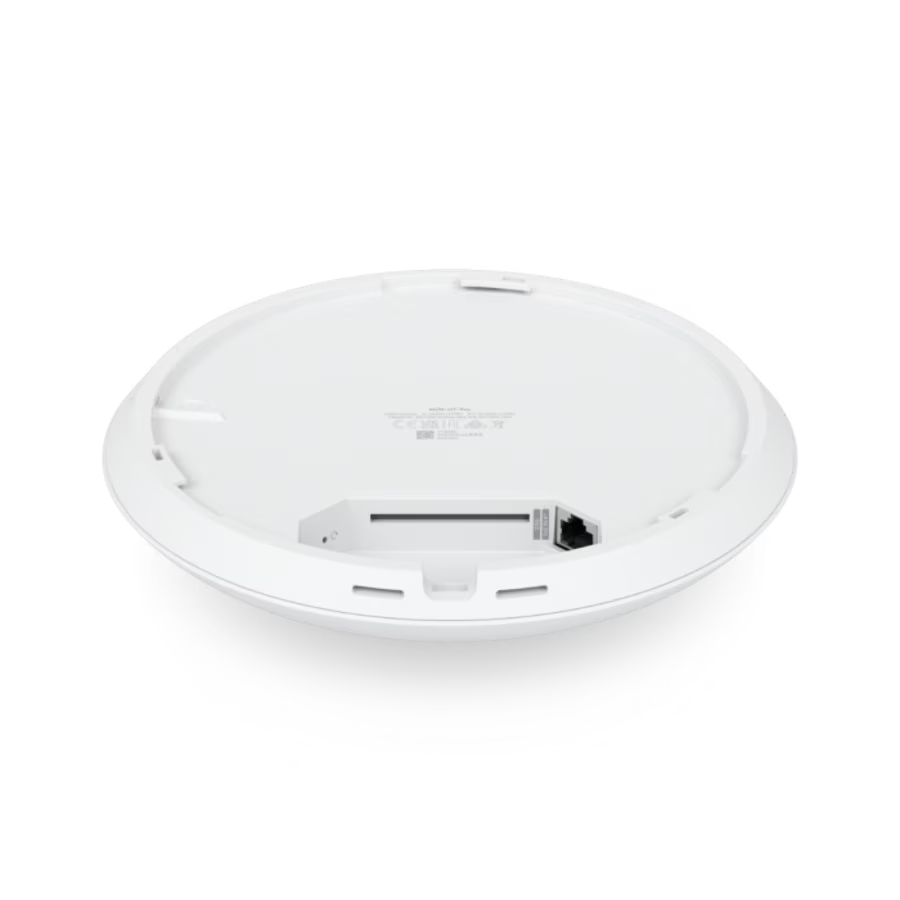

• Ethernet Interface: (1) 2.5 GbE RJ45 port for high-speed multi-gigabit backhaul connections.

• Power Method: Requires PoE+ (802.3at) power (Maximum power consumption: 21W).

• Management & Security: Managed centrally via UniFi Network application (Version 8.0.7 or later) with support for WPA3 and Private Pre-Shared Keys (PPSK).

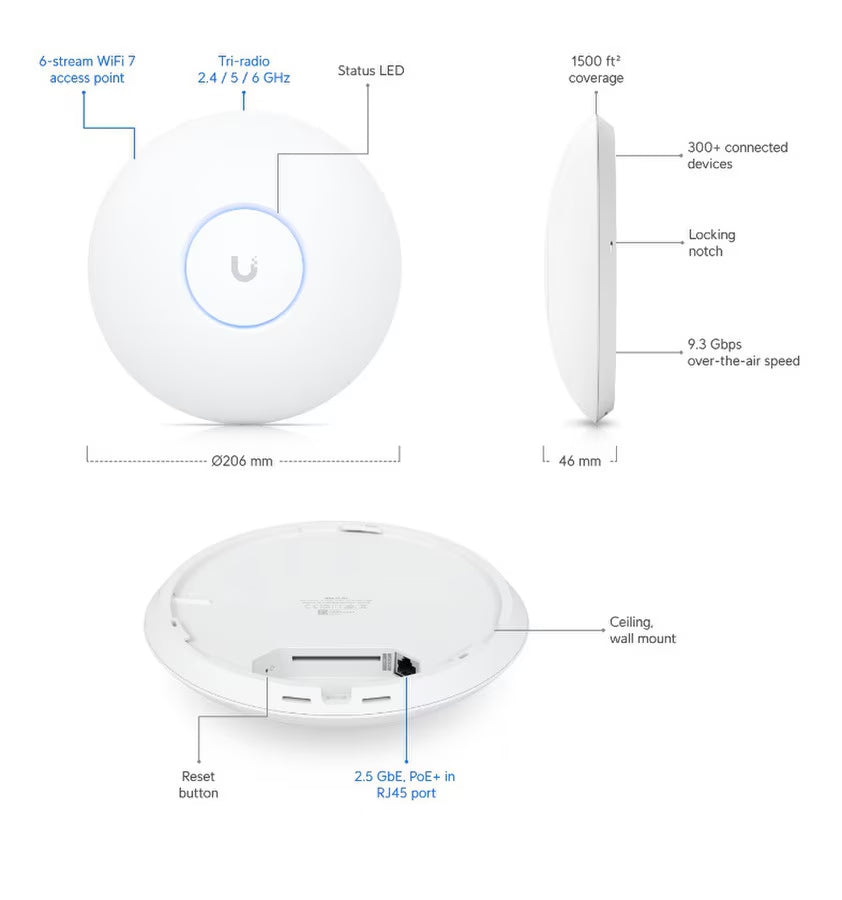

• Physical Design: Round enclosure measuring Ø206 x 46 mm (8.1" x 1.8") weighing 680 g (1.5 lb).
